Hydraulic tensioners

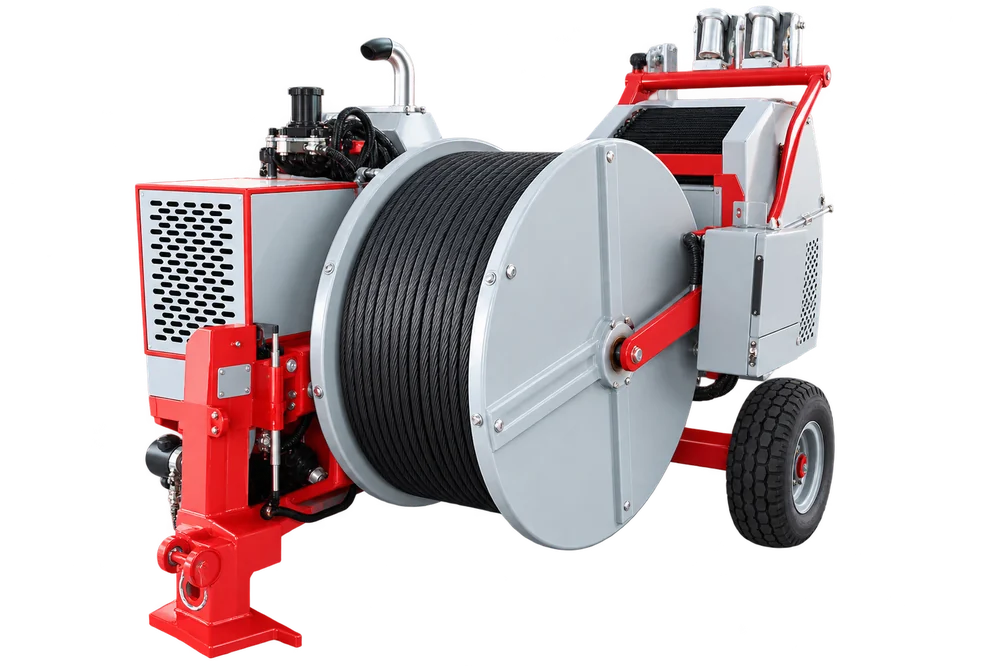

GL2×35
A hydraulic tensioner for conductor stringing. Review continuous tension, bull-wheel geometry and conductor dimensions together.
Download specification summary · TXT
2×35/1×70 kNMax. continuous tension
5 km/hMaximum speed
1300 mmBull-wheel diameter
Working
specifications.
Read force and speed ratings together. Maximum force and maximum speed are not a simultaneous operating point.
| Max. continuous tension | 2×35/1×70 kN |
|---|---|
| Max. intermittent tension | 2×40/1×80 kN |
| Maximum speed | 5 km/h |
| Tension at maximum speed | 2×20/1×40 kN |
| Maximum reverse pulling force | 2×30/1×60 kN |
| Bull-wheel diameter | 1300 mm |
| Maximum conductor diameter | 40 mm |
| Total weight | 4500 kg |
| Overall dimensions | 4300 × 2250 × 2700mm |
| Engine power | 77kW(103hp) |
Listed configuration
- Tension presetting with stepless speed control
- Hydraulic oil cooling system
- Grounding connection point
Additional devices
Discuss project-specific accessories and configuration with the team.
Specifications transcribed from the GALAXY catalogue. Confirm the current configuration, optional equipment and project suitability before ordering.
GALAXY Catalogue V2026 · pp. 20–21
