Hydraulic tensioners

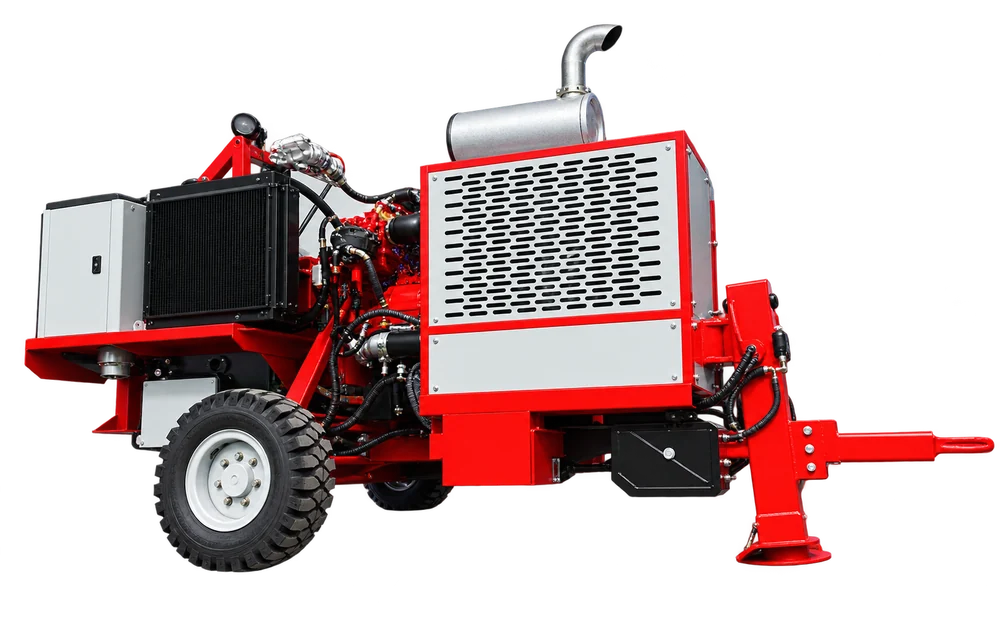

GL1×40
A hydraulic tensioner for conductor stringing. Review continuous tension, bull-wheel geometry and conductor dimensions together.
Download specification summary · TXT
40 kNMax. continuous tension
5 km/hMaximum speed
1300 mmBull-wheel diameter
Working
specifications.
Read force and speed ratings together. Maximum force and maximum speed are not a simultaneous operating point.
| Max. continuous tension | 40 kN |
|---|---|
| Max. intermittent tension | 45 kN |
| Maximum speed | 5 km/h |
| Tension at maximum speed | 20 kN |
| Maximum reverse pulling force | 35 kN |
| Bull-wheel diameter | 1300 mm |
| Maximum conductor diameter | 40 mm |
| Maximum optical fibre cable diameter | 21 mm |
| Total weight | 3430 kg |
| Overall dimensions | 4000 × 2000 × 2300 mm |
| Engine power | 77 kW / 103 hp |
Listed configuration
- Tension presetting with stepless speed control
- Hydraulic oil cooling system
- Grounding connection point
- Hydraulic power pack for motorised drum stands
Additional devices
- Trailer air brake system — extra charge
- Hydraulic conductor clamps — extra charge
- Lighting system
Specifications transcribed from the GALAXY catalogue. Confirm the current configuration, optional equipment and project suitability before ordering.
Catalogue pp. 18–19
